Four Effective Ways to Drain Water from a Flat Roof

After a heavy Irish downpour, the real test of a flat roof is how fast the water leaves it. Good flat roof drainage moves rainwater off the surface before it can pool, soak into the build-up, or find a seam to slip through. There are four proven ways to do it, and each suits a different kind of roof. The options are external gutters and downpipes, scuppers cut through a parapet wall, internal roof drains, and siphonic systems for the largest roofs.

A flat roof is never truly flat. It is built with a slight fall so water runs towards an outlet, and the method you choose has to match that fall, the roof size, and whether the roof sits behind a parapet or drains off an open edge. Get it right and the roof stays dry for decades. Get it wrong and you invite ponding, the slow pooling that ages a membrane faster than almost anything else.

The sections below cover how each method works, where it performs best, and how to pick the one that fits your property.

Why a Flat Roof Still Needs a Fall

Every flat roof needs a built-in fall because standing water is its biggest enemy. A slope of even a degree or two guides rainwater towards the outlets so it drains away quickly. Without that fall, water sits in shallow pools, adds weight to the structure, and slowly breaks down the waterproofing until leaks appear.

The recognised standard sets a minimum finished fall of 1:80, which works out at about 12.5mm of drop for every metre of roof. Designers usually build in a steeper fall, often 1:40 or 1:60, so the roof still drains properly after the structure settles and the deck flexes under load. You can read the detail in the code of practice for flat roofs, while rainwater disposal itself falls under Ireland’s building regulations on surface water, which require every building to carry water safely away from the roof.

Ponding is the warning sign to watch for. Water that still sits on the roof two days after rain points to a flat spot, a blocked outlet, or a fall that was never steep enough. Left alone, that pool is how a small leak becomes a costly repair, so the drainage system and the fall behind it matter more than any single material choice.

Gutters and Downpipes

Gutters and downpipes are the most common and least expensive way to drain a flat roof. The roof falls towards its open edge, water spills into a gutter running along that edge, and downpipes carry it to ground level and away from the walls. For most Irish homes with a flat extension or garage, this is the default choice.

Guttering works best where the roof drains off an exposed edge rather than sitting behind a parapet. On wider flat roofs a standard domestic gutter can struggle in heavy rain, so a deeper box gutter is often fitted instead. A properly sized box gutter handles a much greater flow and copes with the sudden downpours that are common here.

What makes gutters a sensible first option:

• Lower cost to install and repair than internal pipework
• Everything is visible, so blockages are easy to spot and clear
• Simple to retrofit to an existing flat roof
• Downpipes can feed a water butt or a soakaway

The trade-off is upkeep. Leaves, moss and grit collect in the channel, and a blocked gutter sends water straight back onto the roof. A quick clear-out twice a year, usually in autumn and spring, keeps them flowing.

Scuppers Through a Parapet Wall

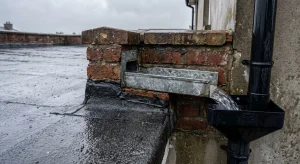

Scuppers are openings cut through a parapet wall that let water escape from a flat roof sitting behind a raised edge. Water falls towards the scupper, passes through the wall, and drops into an external hopper and downpipe below. They are a simple, low-maintenance answer for parapet roofs where a normal edge gutter cannot work.

Because a parapet blocks water from running off the side, a flat roof enclosed by walls needs either scuppers or internal drains. Scuppers are the more affordable and accessible of the two. The whole outlet is visible from outside, so it is easy to check and clear.

Good practice is to fit an overflow scupper a little higher than the main outlet. If the primary drain clogs, the overflow gives rising water a second escape route before it reaches a depth that could damage the roof or push water indoors.

The weak points are debris and cold. A narrow scupper can block with leaves, and because the outlet is exposed on the outside of the building, it can freeze in a hard winter. Sizing the opening generously and keeping it clear deals with both.

Internal Roof Drains

Internal roof drains sit at the low points of the roof surface and carry water down through pipework routed inside the building. They suit large flat roofs and parapet roofs where edge drainage is not an option, and they are common on warehouses, offices and flat-roofed apartment blocks across Dublin.

The drain outlet is set into the membrane at the lowest point, fitted with a domed guard that keeps leaves and debris out while letting water through. From there, concealed pipes run inside the building to the main drainage. Because the pipework is protected indoors, it rarely freezes and stays out of sight.

Where internal drains earn their place:

• They handle large roof areas and heavy flows well
• Nothing is visible externally, which keeps the elevation clean
• Pipes stay warm indoors, so freezing is rare
• Overflow outlets can be built in as a backup

The catch is access. A blockage sits inside a pipe you cannot see, so a clogged internal drain is harder to find and clear than a gutter or scupper. Regular inspection of the outlet guards is the way to stay ahead of it, and on a bigger roof that is a job for a professional rather than a ladder and a bin bag.

Siphonic Drainage for Larger Roofs

Siphonic drainage is a high-capacity system used mainly on large commercial and industrial flat roofs. Specially designed outlets stop air entering the pipework, so the pipes run completely full and pull water off the roof under pressure. This clears very high volumes fast, using fewer and smaller pipes than a conventional system.

The pressure effect means a siphonic layout can drain a big roof with far less underground pipework and fewer downpipes, which is why it appears on supermarkets, factories and distribution centres. On a normal house or small extension it is overkill, and the design has to be done by a specialist because the outlet and pipe sizes are calculated for the specific roof.

Siphonic systems are efficient but unforgiving of poor design or a partial blockage, since they rely on the pipes staying full. For the large flat roofs they are built for, though, nothing else moves water as quickly.

How to Choose the Right Flat Roof Drainage Method

The right flat roof drainage method comes down to three things. The size of the roof, whether it sits behind a parapet, and how much rain it has to shed. Small open-edged roofs drain happily through gutters. Parapet roofs need scuppers or internal drains. Large commercial roofs often call for internal or siphonic systems.

Climate matters as much as the method. Ireland’s frequent, heavy rain means whatever you fit has to cope with sudden volume and clear quickly once the shower passes. That is also why the roof build-up and the drainage should be planned together, and why choosing a flat roof built for Irish weather is part of the same decision rather than a separate one.

Whichever route fits your roof, the drainage only works if the fall is right and the outlets stay clear. A roof that ponds after every shower is telling you something is wrong, and the fix is usually cheaper the sooner it is caught.
